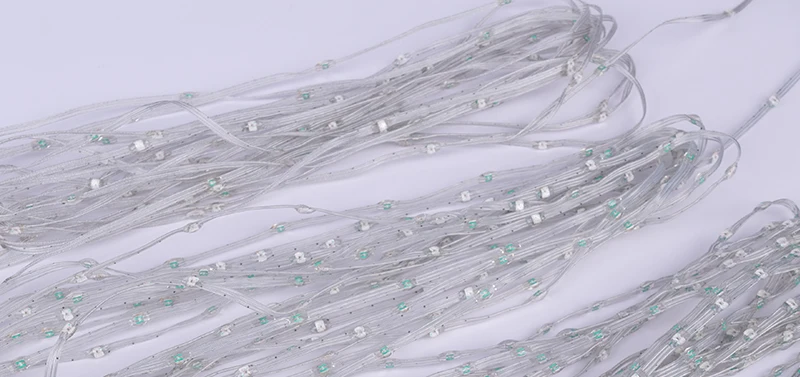

5V 12V WS2811 WS2812 3PIN Clear Lense LED String Lights Dream Color RGBIC Addressable Individually Fairy Seed Pixels Light
A discerning wardrobe consists of timeless basics. Our henley is unmistakably refined, subtle, and features an attractive neckline with a deep five-button placket.
SPECIFICATIONS
Base Type: Wedge
Battery Type: Button Cell
Body Material: Plastic
Brand Name: HarrisonTek
Certification: VDE,UL,RoHS,LVD,GS,EMC,CQC,CE,ce,EMC,FCC,GS,LVD,pse,ROHS,SAA,UL,VDE
Choice: yes
Color: WHITE
Head Number: > 200
Hign-concerned Chemical: None
Holiday Name: Christmas
Is Bulbs Included: Yes
Is Dimmable: No
Length: 1
Light Source: LED bulbs
Lighting Distance: >30m
Luminous Flux: <60
Model Number: WS2811 IC
Music: None
Occasion: LIVING ROOM
Origin: Mainland China
Plug The Tail: No
Power Source: DC
Remote Control: No
Usage: HOLIDAY
Voltage: 5v
Warranty: 2
semi_Choice: yes
Attention Please :
5V string must use 5V power supply,
12V string must use 12V power supply,
Otherwise, It will burnt out.This is the strings with LED on it, not include male/female connectors and controller, power supply…. You should buy these components separately。
This is the strings with LED on it, not include male/female connectors and controller, power supply…. You should buy these components separately
Specifications:
Working Input Voltage: DC5V， 12V
Protocol: WS2811
Color Order: 5V GRB, 12V RGB
SMD: SMD3240
LED Glue: Transparent
Output Power: 0.1W/pcs led.
Emitted Color:WS2811/WS2812 RGBIC.
Out R/G/B output current: 5V 5mA, 12V 8.5mA

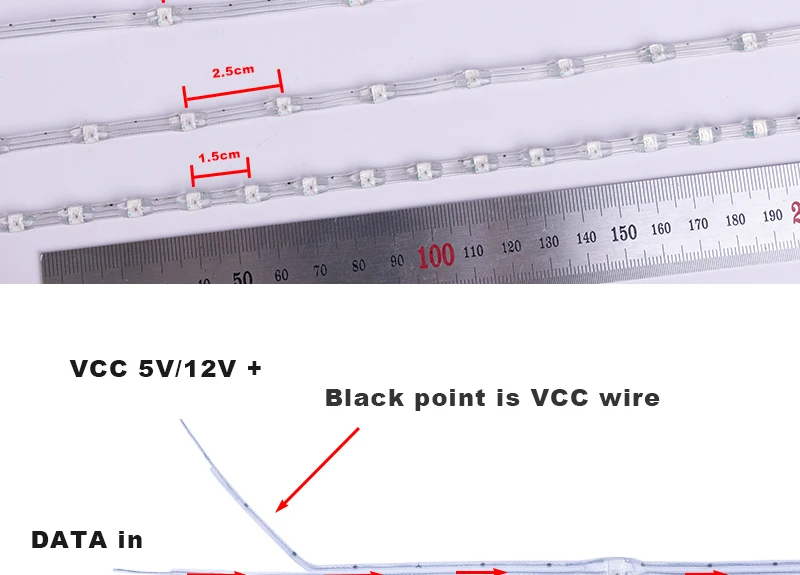

Wire: #26AWG, 3PIN wire (VCC+,DATA,GND)

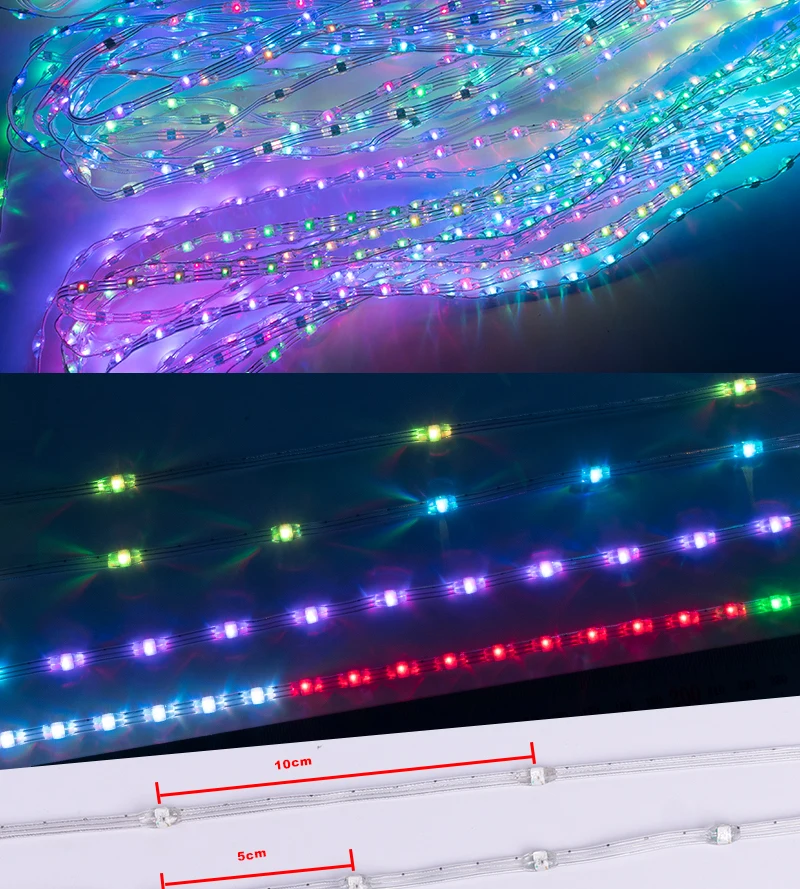

LED Space: 1.5cm, 2cm, 2.5cm,3cm, 5cm, 10cm

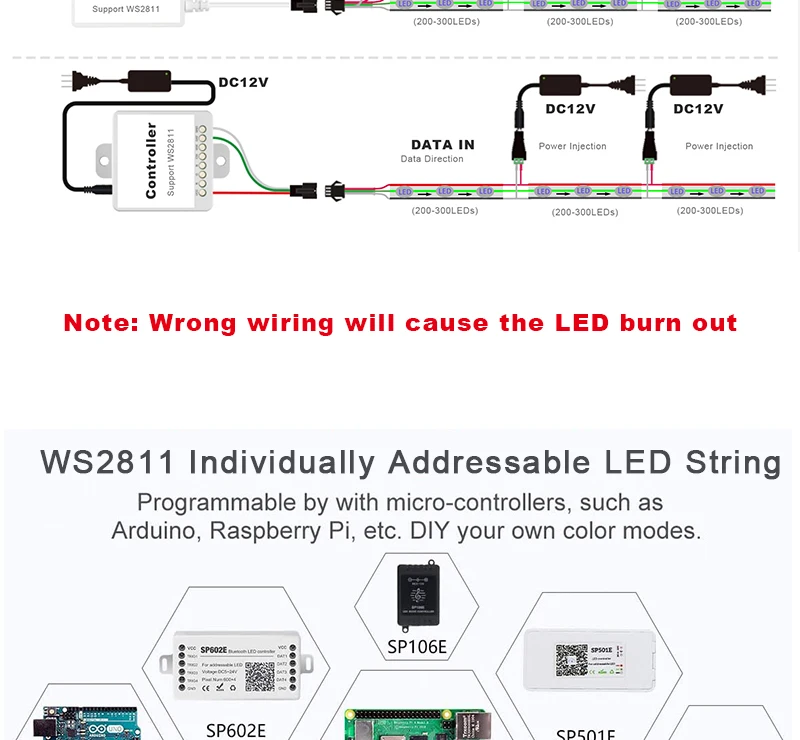

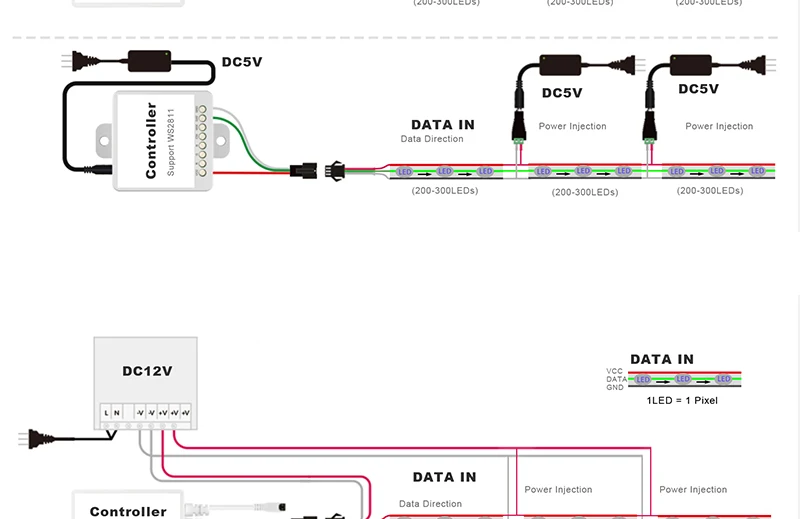

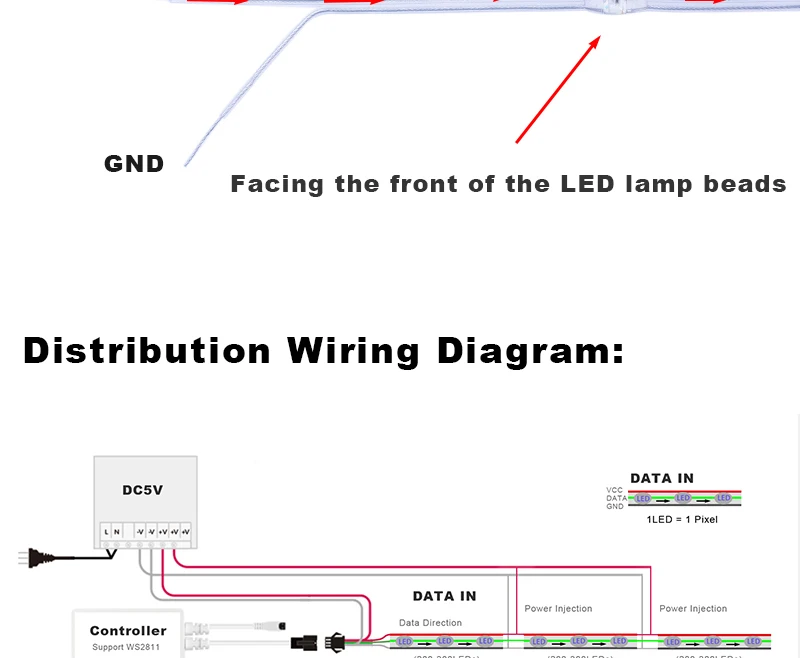

Power Injection suggestion:
Warm Tips: Because of voltage drops, if LED quantity above 200-300LEDs, you can not light it up without power injection, so need to cut them to use
1.5cm LED space strings: 66LED/meter, 1LED/pixels, suggest to add voltage at every 300 LED
2.5cm LED space strings: 40LED/meter, 1LED/pixels, suggest to add voltage at every 300LED
5cm LED space strings: 20LED/meter, 1LED/pixels, suggest to add voltage at every 200 LED
10cm LED space strings: 10LED/meter, 1LED/pixels, suggest to add voltage at every 200LED
View Angle: 360 degree.
Long Life: more than 50000 hours.
Working Tempreture: -20~50°.
Waterproof level:IP67 Waterproof
Warranty: 2 Year.
Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.Control mode: SPI serial protocol, compatible with WS2811/1903/16703/mobile APP controller/SD card controller.

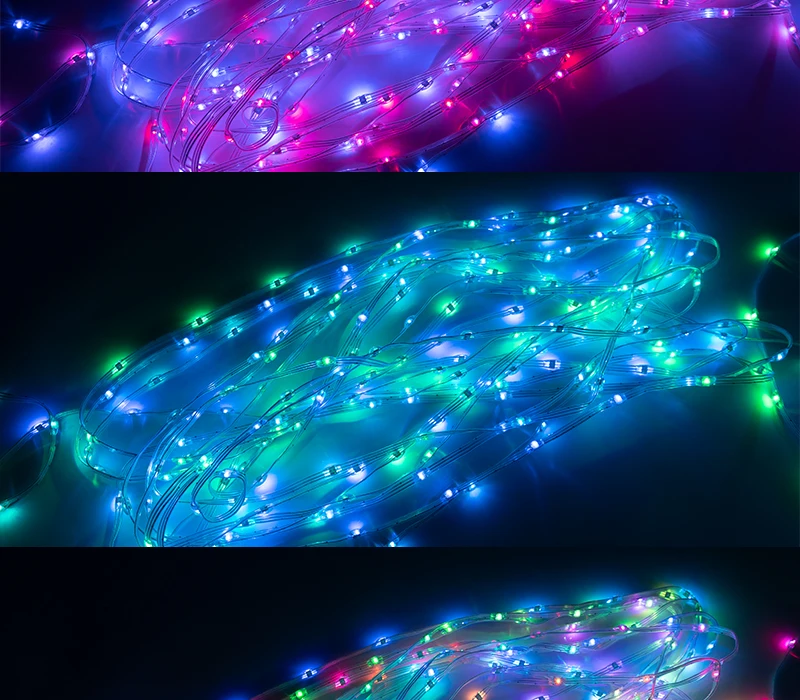

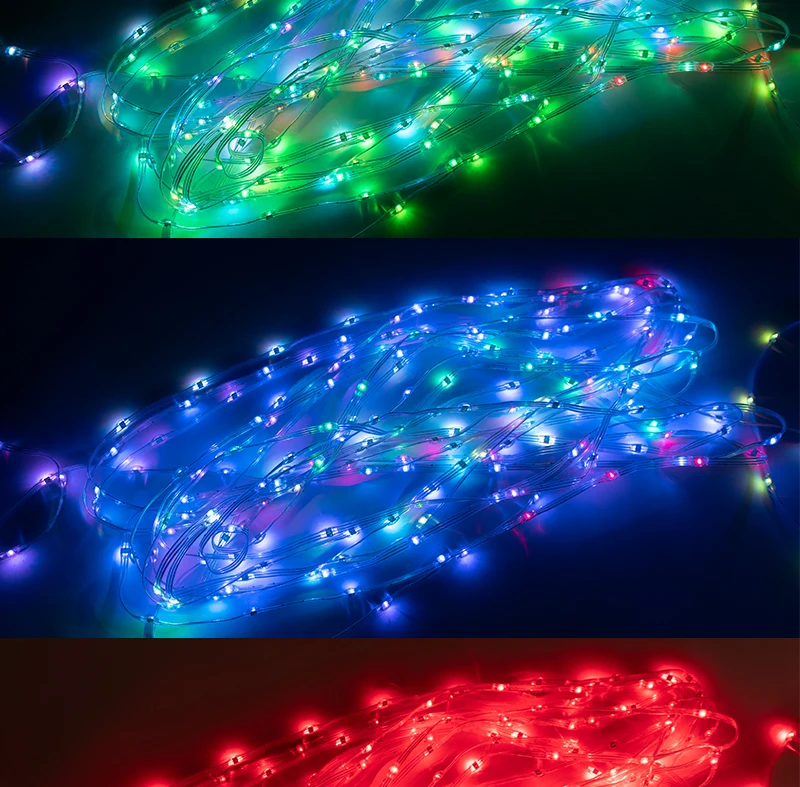

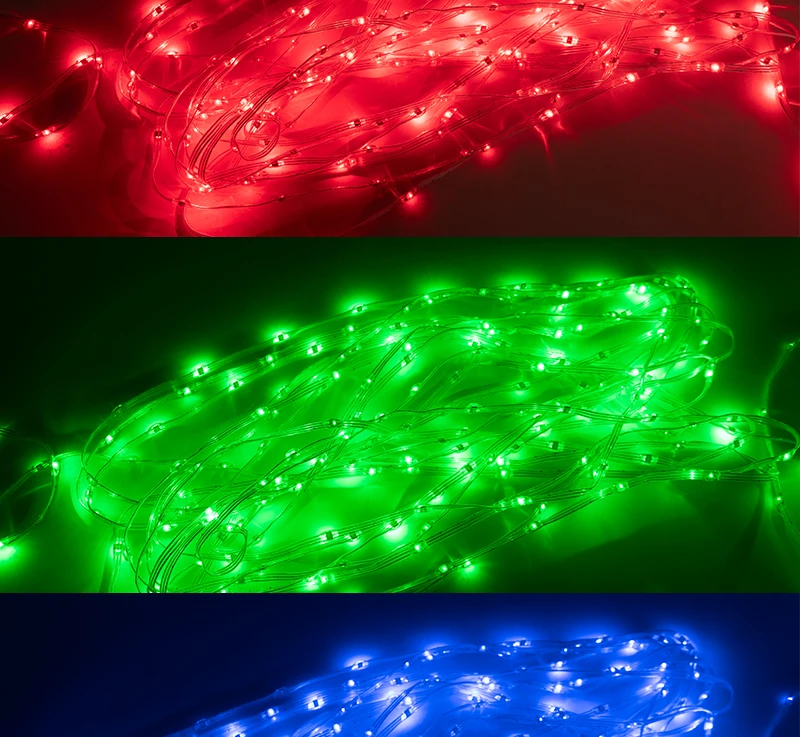

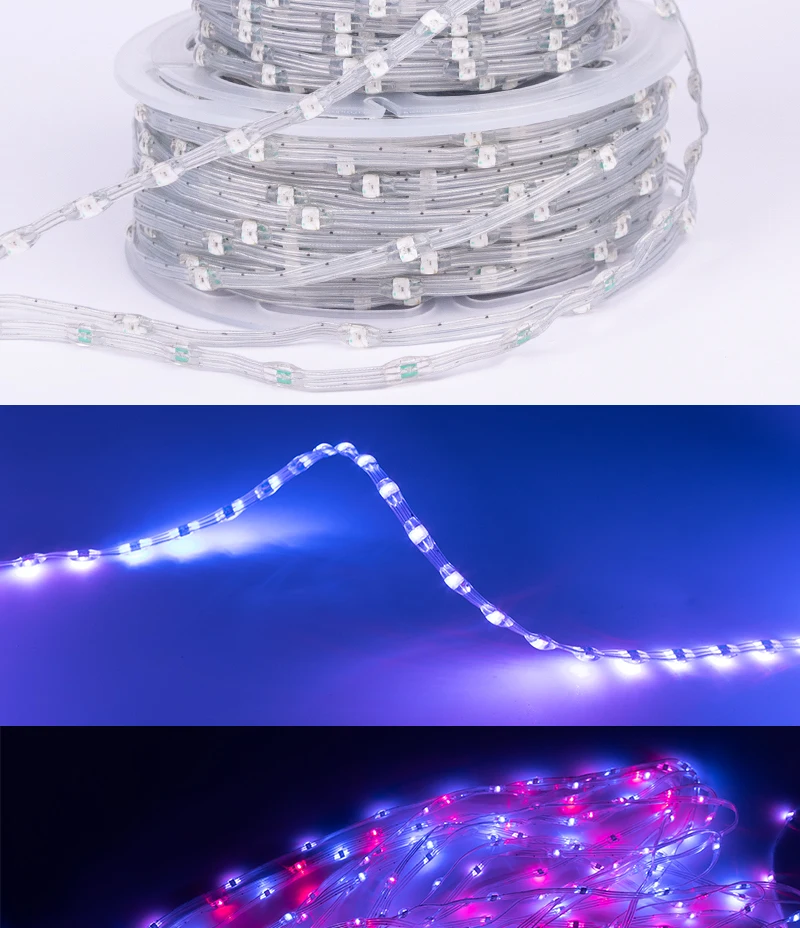

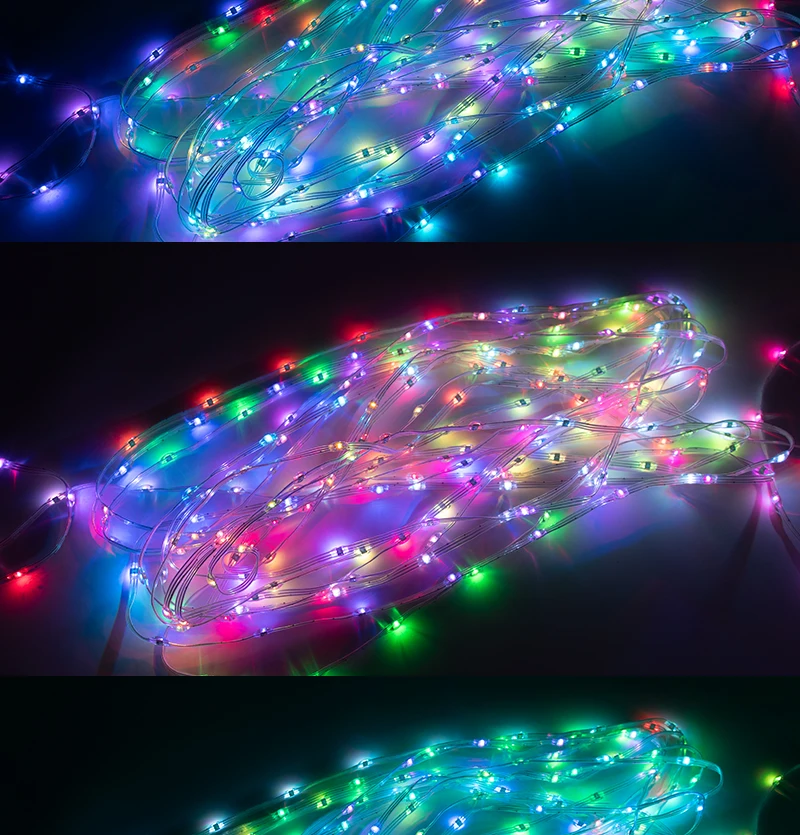

Individually Addressable WS2811 RGBIC Chip：Dream full color Programmable LED String. Chasing Lighting, Rainbow ,Fire ,Meteor, rhythm, etc all kinds of scenes and special effects.
Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.

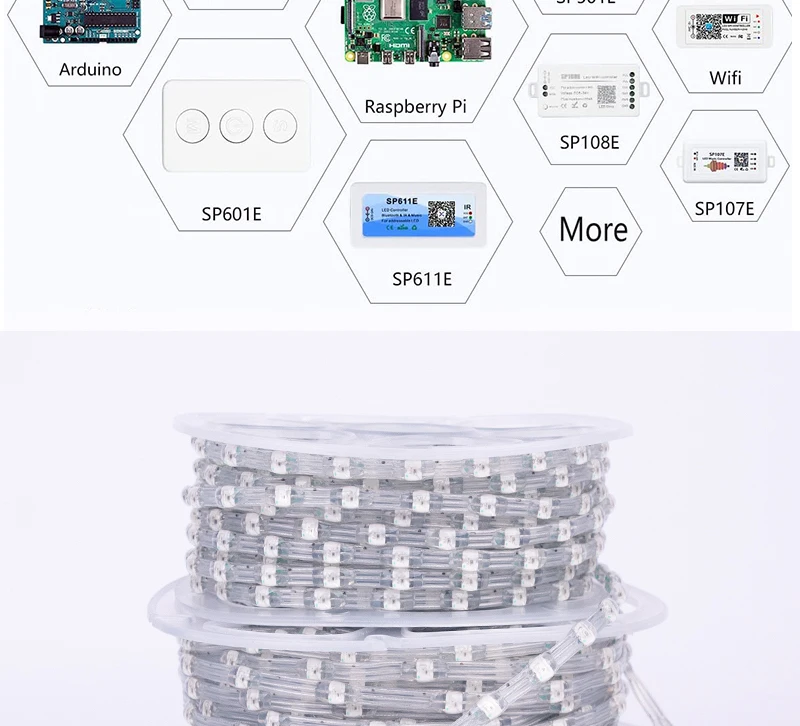

DIY Controllers: Each pixel can have its own color and brightness as your wish. Compatible with Arduino, Raspberry Pi, Teensy, T1000S,K1000C etc programmable controllers. Support SP110E SP105E SP108E SP110E SP601E etc Bluetooth APP IR controllers, CSY07 CSY08 X2 SP106E SP107E SP601E SP608E SP611E etc music bluetooth APP controllers,SP511E SP501E etc smart WiFi Alexa music Controllers.

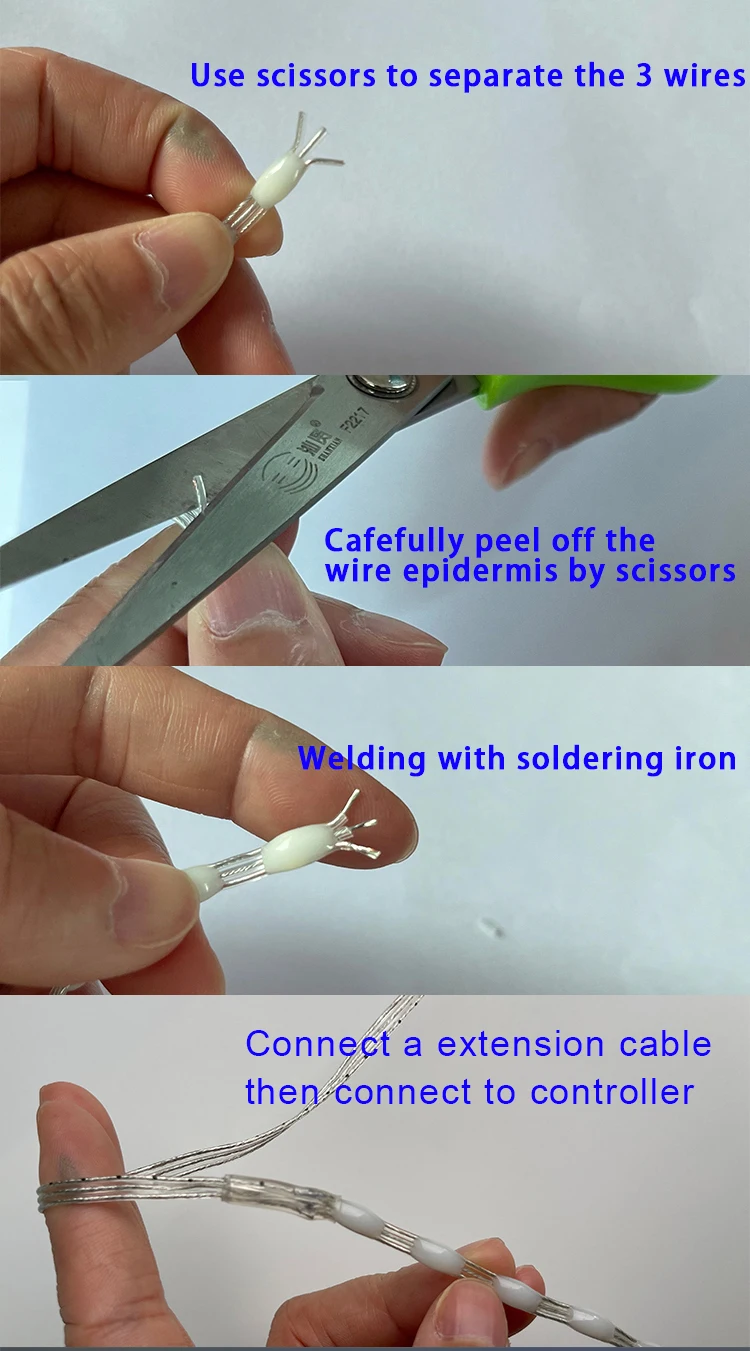

1.5/2.5cm How to Connect to controller
1.5/2.5cm LED space strings don't have enough wire to connect to controller, you should add a extension cable, we will off you the cable
| Emitting Color |
LED Space 5cm, LED Space 10cm, LED Space 1.5cm, LED Space 2.5cm |
|---|---|
| Style |
12V, 5V |
| Wattage|Ships From |
1000 Pixels x 3 sets|CHINA, 1000 Pixels x 2 sets|CHINA, 100 Pixels|CHINA, 1000 Pixels x 4 sets|CHINA, 300 Pixels|CHINA, 200 Pixels|CHINA, 1000 Pixels|CHINA, 500 Pixels|CHINA |
